Smart Technology
|

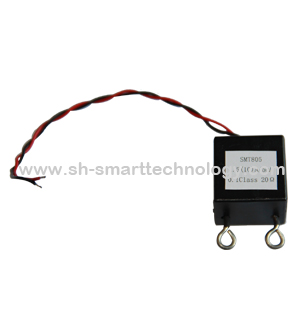

SMT805 Specification Datasheet |
| Profile |

|
| Parameter |
Primary current（A） |
Secondary current（mA） |
BurdenRb（Ω） |
Max current（A） |
class |
remark |
| 1.5 |
5 |
20 |
10 |
0.1 |
|
| Ambient |
temperature：－40℃～＋70℃；R H≤98（25℃）；Height about sea level：≤3000m |
| Dielectric strength |
Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ |
Dimension
(mm)
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
| 9.2 |
5.2 |
20 |
30 |
17 |
47 |
2.2 |
31 |
11 |
|
|
|
