Smart Technology

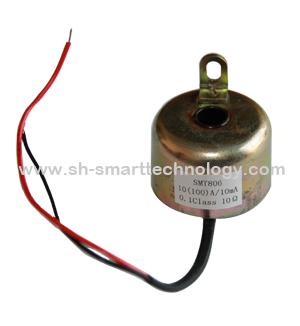

SMT806 Specification Datasheet
Profile

Parameter Primary current（A） Secondary current（mA） BurdenRb（Ω） Max current（A） class remark
10 10 10 100 0.1
Ambient temperature：－40℃～＋70℃；R H≤98（25℃）；Height about sea level：≤3000m
Dielectric strength Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ
Dimension
(mm)
 A B C D E F G H I J K L M
9.2 5.2 20 30 17 47 2.2 31 11
