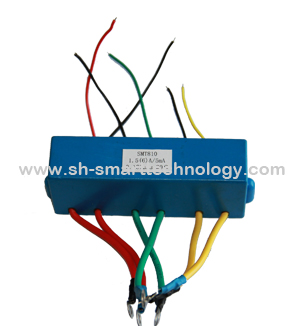

SMT810 Specification Datasheet |
| Profile |
  |
| Parameter |
Primary current（A） |
Secondary current（mA） |
BurdenRb（Ω） |
Max current（A） |
class |
remark |
| 1． |
5 |
20 |
6 |
0.1 |
|
| Ambient |
temperature：－40℃～＋70℃；R H≤98（25℃）；Height about sea level：≤3000m |
| Dielectric strength |
Primary winding and secondary wing:≥ 3kV、insulated resistance:≥1GΩ |
Dimension
(mm)
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
| 90 |
87 |
4.5 |
2.5 |
80 |
23 |
180 |
33 |
|
|
|
|
|
