SMT531 Specification Datasheet

Specification Datasheet

ML Relay

Product Number



SMT531

IBasic Parameter

Dimensions(mm)

120×52×28

Contact Form

3A(normal open)/3B(normal closed)

Contact Material

Silver Alloy

Max Switching Current(resistive load)

120A

Max Switching Voltage

110VDC/250VAC

Max Switching Power

3300W/30000VA

Weight

250 g

IICoil Parameter(20℃)

Rated Coil Voltage

6VDC

9VDC

12VDC

24VDC

48VDC

Coil Resistance

Single Coil (±10%Ω)

12

27

48

192

768

Double Coil (±10%Ω)

6

13.5

24

96

384

Pick-up Voltage

≤75%Rated Coil Voltage

Drop-out Voltage

≤75%Rated Coil Voltage

Max. Applicable Voltage

 ≤120%Rated Coil Voltage

Pick-up Time (At Rated Voltage)

≤20ms

Drop-out Time (At Rated Voltage)

≤20ms

Bounce Time

≤2ms

Power Consumption

Single Coil:3W;Double Coil:6W

IIICharacteristic Parameter

Ambient Temp

-40~+70℃

Anti-vibration

10~55Hz,0.5mm (Double Amplitude)

Anti-shock

98m/s2,11ms

R.H.

45%~85%

Contact Resistance

≤2.0mΩ (1A/6VDC testing condition)

Insulated Resistance

1000MΩ  (500VDC)

Dielectric Strength

Between Contacts

2500 VAC 50/60Hz (1 min )

Between Contact & Coil

5000 VAC 50/60Hz (1 min )

Life

Electrical Life

≥1x104 OPS

Mechanical Life

≥1x106 OPS

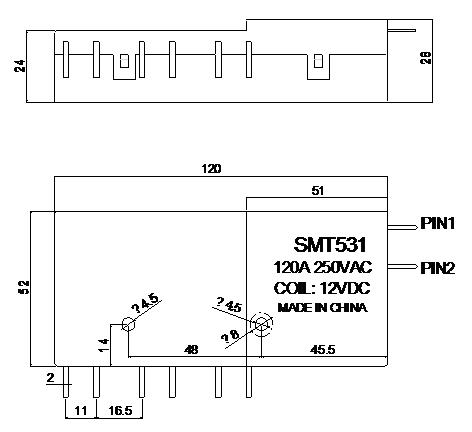

IVProfile Drawing
